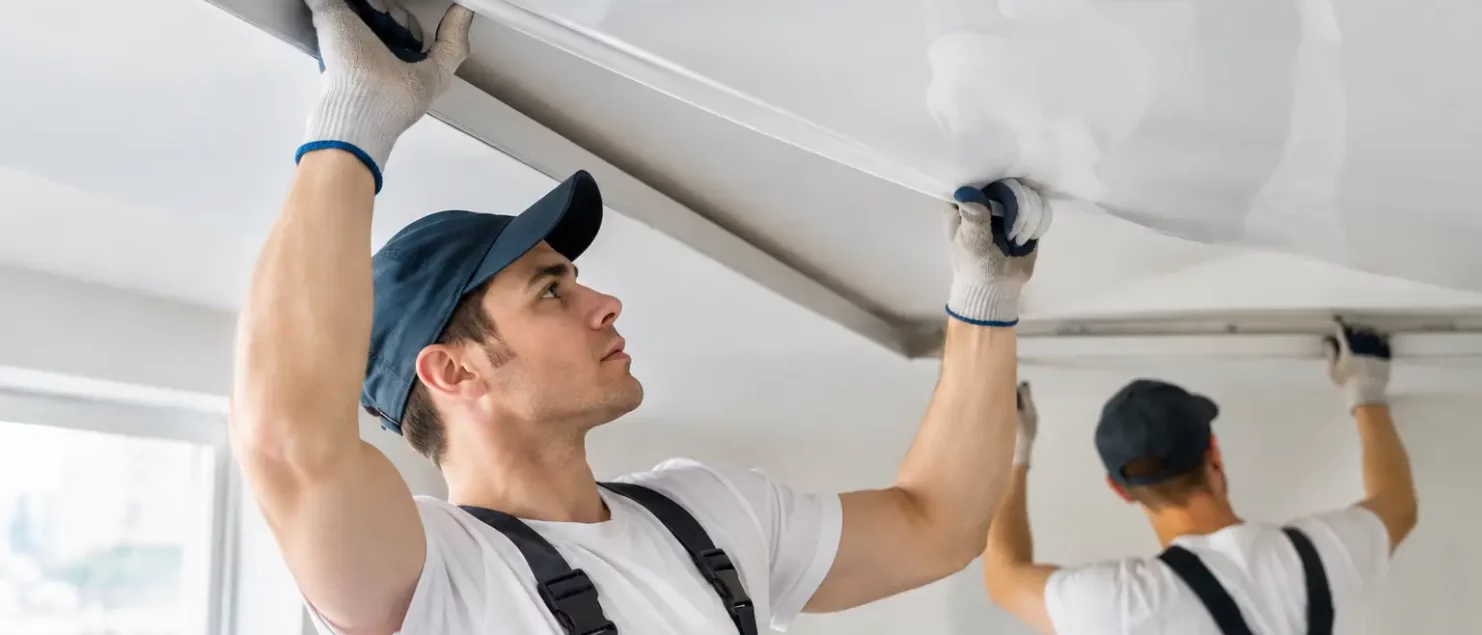

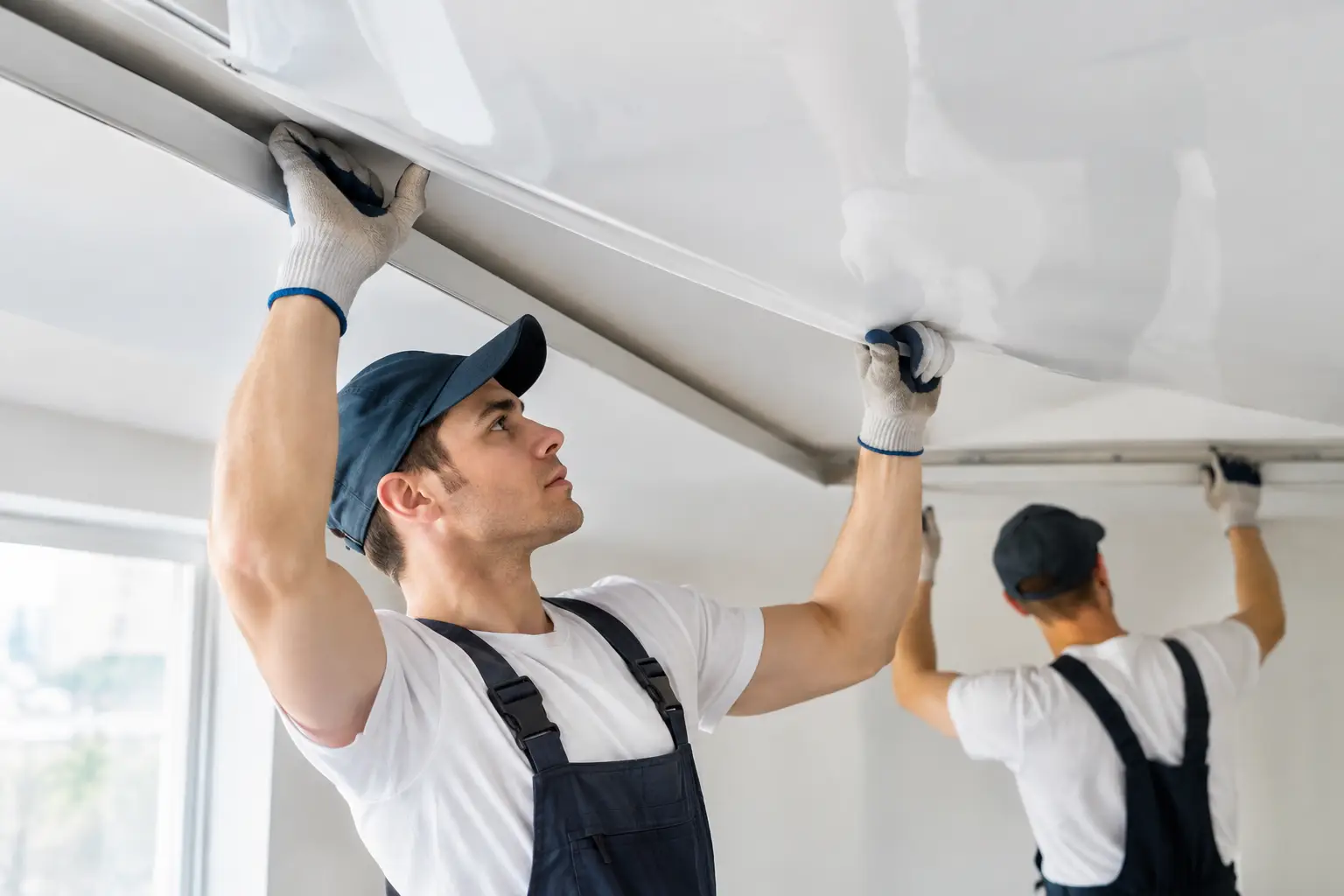

Stretch Ceiling Installation Training That Delivers

Stretch Ceiling Installation Training That Delivers

A flawless stretch ceiling is judged long before the final edge disappears into the profile. It is judged in the set-out, the coordination of lighting and services, the condition of the substrate, and the installer’s control of tension and heat. Stretch ceiling installation training gives professionals the practical discipline to turn an ambitious ceiling concept into a clean, stable, finished architectural surface.

For architects, contractors, and specialist installers, training is not simply an introduction to a material. It is the point where product knowledge becomes repeatable project performance. The difference is visible in every reveal, light line, perimeter detail, and uninterrupted plane.

Why Stretch Ceiling Installation Training Matters

Stretch ceiling systems can appear deceptively simple once complete. The membrane forms a precise visual plane, while profiles, fixings, electrical components, acoustic layers, and building services are concealed above it. That simplicity is the result of careful sequencing.

Installation training addresses the decisions that determine whether a ceiling looks intentional or improvised. Installers learn how profile geometry affects the finished edge, how room dimensions influence membrane behavior, and how heat must be managed to achieve even tension without compromising the material. They also learn where tolerances matter most. A small deviation at a wall line can become highly visible when paired with a continuous LED detail or a mirror surface.

This expertise protects the design intent as well as the construction schedule. When installers understand the system before arriving on site, they can identify conflicts early, coordinate effectively with electricians and drywall teams, and avoid last-minute modifications that affect quality.

What Professional Training Should Cover

A credible training program combines system knowledge with hands-on installation. Classroom-only instruction can explain components, but it cannot teach the judgment required when a room is not square, a lighting recess changes direction, or a service location falls too close to a profile.

Profiles, Fixings, and Perimeter Accuracy

The profile is the foundation of the finished ceiling. Training should cover profile selection for standard perimeters, shadow gaps, floating effects, backlit fields, curved forms, and integrated lighting. Each option has its own fixing requirements and visual consequences.

Installers need to assess the supporting structure, choose suitable fasteners, and establish a reliable datum before profiles are installed. This is especially relevant in renovation work, marine interiors, and premium residential projects, where walls and existing ceilings may vary more than drawings suggest. A level laser is essential, but it does not replace careful measurement or a realistic assessment of the substrate.

Good instruction also explains corner treatment, joints, curved sections, and transitions between ceiling and wall elements. These are the areas where an otherwise well-installed ceiling can lose its precision.

Membrane Preparation and Tensioning

Membrane handling requires clean working practices and controlled preparation. Installers should understand how to unpack, position, inspect, and protect the membrane before tensioning begins. Dust, sharp tools, poor storage, and uncontrolled site traffic create avoidable risks.

The tensioning process demands a consistent sequence. Heating the space and material correctly makes installation possible, but excessive or uneven heat can affect the result. Training should demonstrate how to work from the initial fixing points through the full perimeter, how to read tension across the surface, and how to correct minor irregularities before the room returns to normal temperature.

The right approach depends on the membrane type, room geometry, and selected detail. A simple rectangular matte ceiling and a large high-gloss ceiling with multiple penetrations should not be approached in exactly the same way. Experienced installers recognize these differences before tensioning starts.

Lighting, Access, and Building Services

Integrated lighting is often the defining feature of a stretch ceiling project. Backlit ceilings, light lines, magnetic track systems, downlights, and illuminated shapes require precise coordination between the ceiling installer, lighting designer, and electrical contractor.

Training should cover the structural support behind each fixture, cable routing, thermal requirements, driver access, and the exact position of cutouts. A membrane should never become the primary support for a technical element. Reinforcement rings, mounting platforms, and purpose-designed components are used to create clean penetrations and dependable serviceability.

Access is equally important. Concealing infrastructure is valuable only when maintenance remains possible. Drivers, controls, valves, sensors, and other components need a defined strategy for future access. On hospitality, retail, and workplace projects, this consideration can prevent disruptive maintenance after handover.

Acoustics and Backlit Applications

Acoustic and backlit systems add performance requirements to visual ambition. Acoustic layers must be selected and installed as part of a coordinated ceiling build-up, not added as an afterthought. Their effectiveness depends on the depth of the cavity, the composition behind the membrane, and the room’s broader acoustic strategy.

Backlit applications require particular care with LED spacing, diffuser behavior, color consistency, and the reflection of internal elements. A bright, even luminous plane depends on more than the membrane itself. Training helps installers understand how to prepare the plenum, position lighting, manage cables, and inspect the field before the membrane is closed.

The Site Discipline Behind a Premium Finish

The strongest installation teams treat the ceiling as a finished surface from the first site visit. They confirm dimensions rather than relying solely on drawings. They review reflected ceiling plans alongside lighting layouts, sprinkler locations, ventilation, and access requirements. They also establish who is responsible for each technical interface.

Before installation, the site should be dry, secure, and sufficiently complete. Wet trades, uncontrolled dust, and unfinished electrical work create unnecessary risk. The membrane is often one of the final visible elements in an interior, so it should be protected by a clear installation sequence rather than used to conceal unresolved work above.

Quality control should continue throughout the process. Professionals inspect profile alignment before tensioning, verify all technical components before closure, and review the completed surface under the intended lighting conditions. Daylight, grazing light, and illuminated ceiling conditions can reveal different issues. Final inspection should reflect how the space will actually be experienced.

Training for Different Project Conditions

Not every project requires the same depth of specialization. A contractor installing straightforward residential ceilings may focus first on standard perimeter systems, basic lighting integration, and membrane handling. A team delivering luxury retail, marine, or hospitality interiors needs additional confidence with complex geometries, large-format surfaces, acoustic assemblies, and coordinated lighting details.

This is where training should be practical rather than generic. It should reflect the product systems a team will specify and install, the environments they work in, and the level of finish expected by their clients. Vecta Design training supports this progression by connecting engineered profiles and membrane systems with installation-ready methods.

There is also a commercial advantage to this approach. Teams that can confidently price technical details, identify constraints early, and communicate clearly with designers are less likely to absorb costly site changes. They are better positioned to deliver the clean visual planes that make stretch ceiling systems valuable in the first place.

How to Apply Training on the Next Project

The first project after training should be selected carefully. A straightforward room with clear coordination requirements allows installers to reinforce the correct sequence without the pressure of an unusually complex geometry. The goal is not speed. It is consistency.

Start with a complete review of the approved drawings, product schedule, and lighting information. Measure the space on site and resolve discrepancies before fabrication or profile installation. Confirm all support points and services, then inspect the room once more before the membrane is introduced.

As the team gains experience, document what worked. Record fixing conditions, profile selections, lighting interfaces, and any coordination issues encountered on site. This creates a more reliable internal process for future work and makes it easier to maintain quality as installation teams expand.

A premium ceiling should feel effortless to the people who use the space. That effect is created by trained hands, disciplined coordination, and details resolved with care before the finished surface comes into view.
