Profile AL 22 A

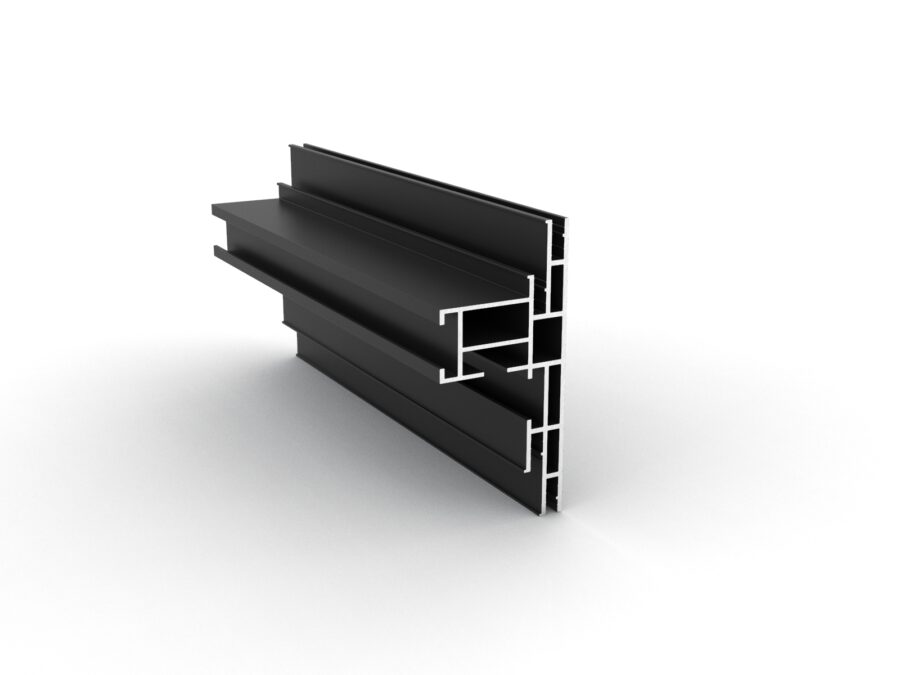

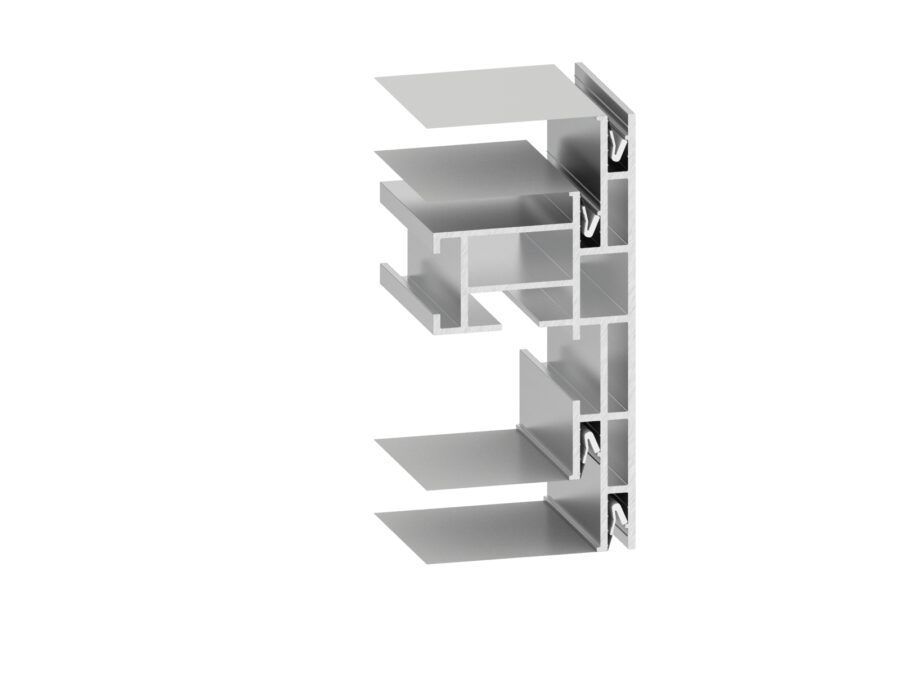

AL 22 A – Aluminum light modular profile 56×118 used with MINI harpoon or EASY ACCESS system.

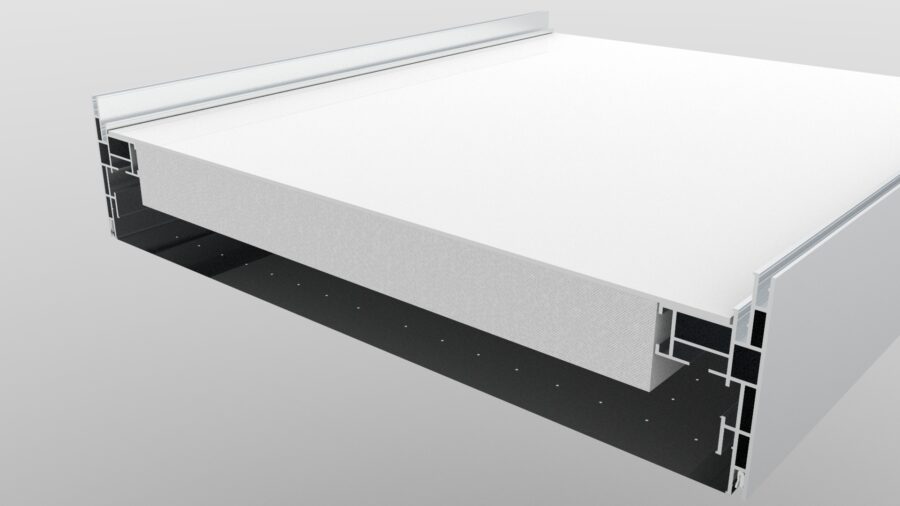

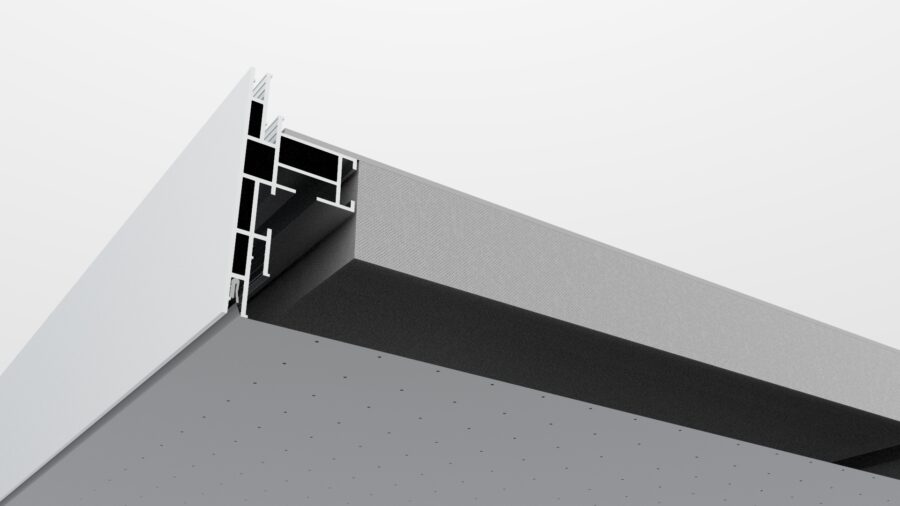

VECTA EXPO is a modular system featuring stretch ceiling material installed in a frame constructed from the AL 22 profile using special fixings. If required, LED lighting can be easily installed. VECTA EXPO panels can be used as illuminated or acoustic partition walls, step and repeat banner, exhibition or information stands and, by design, can be used for other applications that may be specified by clients. The profile has the unique
capability of enabling the installation of stretch materials fitted with MINI harpoon or the new Easy Access system. Standard profile length 2,5 m, special order 5m long profile. Smallest angle for AL 22 A profile can be 45 degrees. Easy corner fixing with LC01 or LC02 corners. Stretch ceilings are made with small reduction using this profile.

Dimensions –118×55 mm, Length in stock 2 – 2.5 m, Price in Euro | per 1 rm. This profile is available in an anodized variant. There are also versions such as anodised black RAL 9005 and white, RAL 9003 matt

NB!  Used with: profile connectors LC 07, LC 08, corner connectors LC 01 ( + LC 02 to reinforce the structure if needed), inside holders for high power LED – LC-03, decoration strip – PC 14 W, harpoon – EXPO or MINI, external fastening – Vecta Support System
